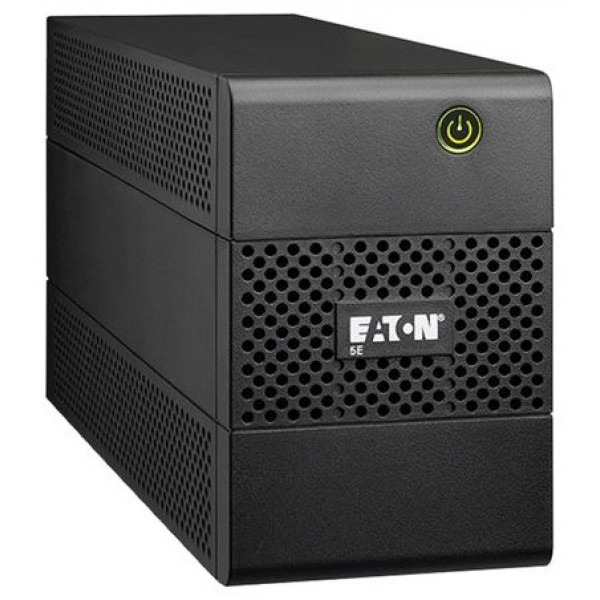

EATON 5E 650I USB DIN

Especificaciones:. . SECONDARY FREQUENCY - MAX: 60 Hz. WATTAGE: 360 W. FORM FACTOR: Tower. INCLUDES NETWORK CARD: No. INPUT CONNECTION: C14. INPUT VOLTAGE - MIN: 162 V. OUTPUT VOLTAGE - MAX: 280 V. SECONDARY FREQUENCY - MIN: 50 Hz. SOFTWARE COMPATIBILITY: Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings). BATTERY TYPE: Sealed, lead-acid. EFFICIENCY: 95. SPECIAL FEATURES: Automatic Voltage Regulation (AVR)|Saves space with a compact tower design|HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)|Includes one Schuko (DIN) Outlet|Data line protection to ensure that the internet line (including xDSL) is protected against surges. CONSTRUCTION TYPE: Free standing model. OUTPUT VOLTAGE - MIN: 170 V. COLOR: Black. EXTENDED BATTERY CAPABILITY: No. OUTPUT VOLTAGE RANGE: 170-280 V. TOPOLOGY: Line-interactive. SURGE PROTECTION: Yes. BACK-UP TIME: .5 min. INPUT NOMINAL VOLTAGE: 230V default (220/230/240V). INPUT FREQUENCY RANGE: 45-63 Hz. INPUT VOLTAGE - MAX: 290 V. VOLTAGE TYPE: AC. PHASE (OUTPUT): 1. BATTERY MANAGEMENT: Automatic battery test, deep-discharge protection, cold-start capable. AUTO SHUTDOWN FUNCTION: Yes. NUMBER OF OUTPUTS C13: 2. OPERATING TEMPERATURE - MIN: 0 ºC. VA RATING: 650 VA. POTENTIAL FREE SWITCH CONTACT: No. RECEPTACLE: (2) C13, (1) Schuko. PHASE (INPUT): 1. PACKAGE CONTENTS: IEC-IEC output cable|User manual. NOISE LEVEL: <40 dB at 1 meter. FEED TYPE: 1. RUNTIME GRAPH: View runtime graph. USER INTERFACE: LEDs. BATTERY QUANTITY: 1. OPERATING TEMPERATURE - MAX: 40 ºC. VOLTAGE: 230V. TEMPERATURE RANGE: 0º to 40ºC (32º to 104ºF). ETHERNET INTERFACE: No. COMMUNICATION: USB port (HID compliant). RELATIVE HUMIDITY: 0-90% non-condensing. OUTPUT APPARENT POWER: 650 VA. RACK MOUNTING KIT: No. NUM OF OUTPUTS PC (SCHUKO): 1. OUTPUT FREQUENCY: 50/60 Hz. RUNTIME AT FULL LOAD: 30 sec. TYPE OF INTERFACE: USB. PRIMARY FREQUENCY - MIN: 45 Hz. BATTERY RATING: 12 V / 7 Ah. TYPE: UPS. OUTPUT NOMINAL VOLTAGE: 230V. EXPANSION SLOTS: No. INPUT VOLTAGE RANGE: 162-290 V. NOMINAL FREQUENCY: 50/60 Hz. PRIMARY FREQUENCY - MAX: 63 Hz. ALTITUDE: 2000 m

DATOS TECNICOS

<>

<>
• Altura: ,288 mm
<>
• Ancho: ,148 mm
<>
• Arranque en frí,o: ,Si
<>
• Cantidad de puertos USB 2.0: ,1
<>
• Capacidad de potencia de salida (VA): ,650 VA
<>
• Certificació,n: ,CE, CB report (TUV)
<>
• Color del producto: ,Negro
<>
• Conecciones de entrada: ,IEC-320-C14
<>

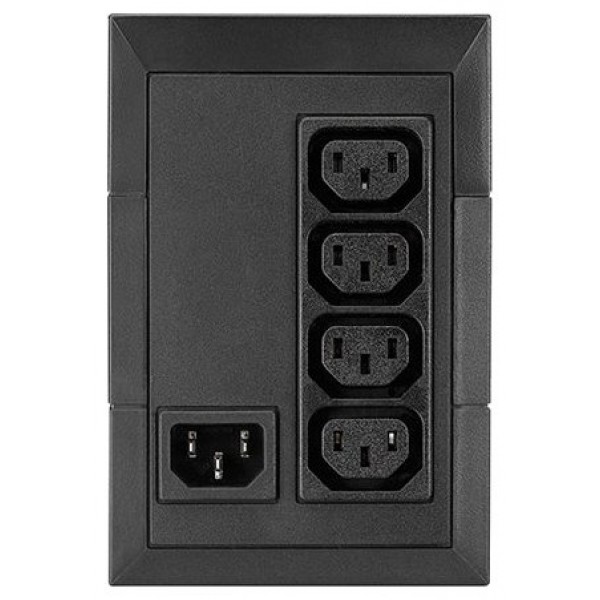

• Conexiones de salida: ,IEC-320-C13 x 2, Schuko
<>
• Nivel de ruido: ,40 dB
<>
• Peso: ,4,64 kg
<>
• Potencia de salida: ,360 W
<>
• Profundidad: ,100 mm
<>
• Puerto USB: ,Si
<>
• Topologí,a UPS: ,Lí,nea interactiva
<>
• Voltaje de entrada de operació,n (max): ,280 V
<>
• Voltaje de entrada de operació,n (min): ,170 V
<>
• Voltaje de operació,n de salida (max): ,230 V
<>
